PSSE vs. PSCAD model benchmarking

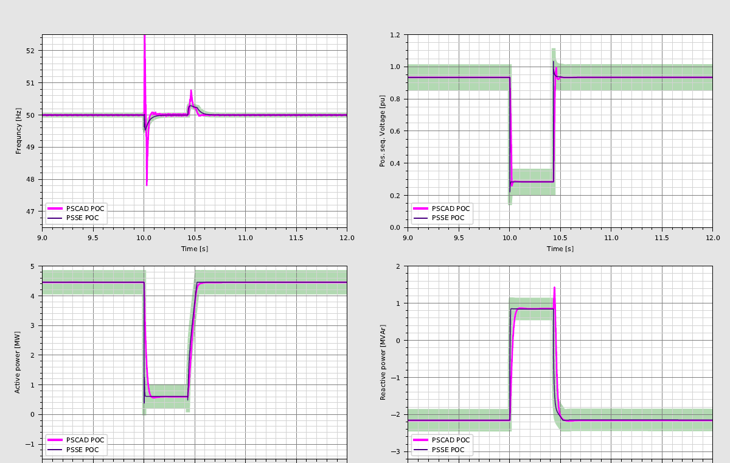

Models must meet the Power Systems Model Guidelines. One requirement is that the PSSE and PSCAD modelling results match, to within a 10% tolerance. The tolerance band is shown in green here.
